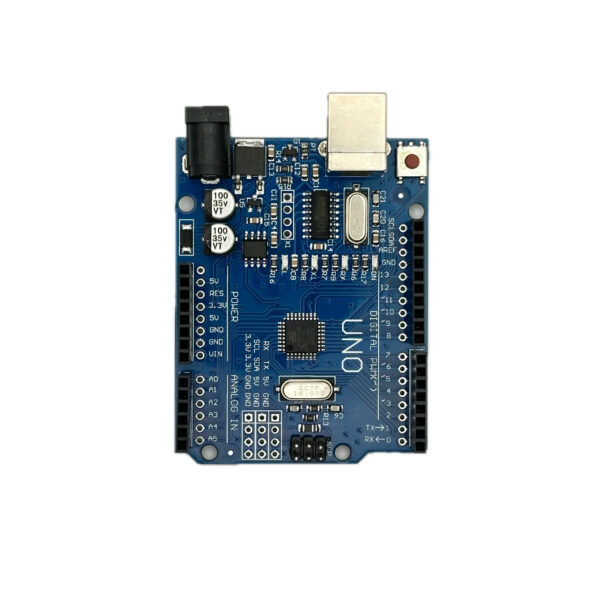

Arduino Uno R3

Arduino Uno R3 is a microcontroller-based development board. Arduino UNO and other boards can read inputs – light on a sensor, a finger on a button, or a Twitter message – and turn it into an output – activating a motor, turning on an LED, publishing something online by utilizing this R3 kit. You can tell your Arduino UNO r3 what to do by sending a set of instructions to the microcontroller on the board. To do so you use the Arduino programming language (based on Wiring), and the Arduino Software (IDE), based on Processing.

This kit is a microcontroller board based on the ATmega328P (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your UNO without worrying too much about doing something wrong, in the worst-case scenario you can replace the chip for a few dollars and start over again.

Specifications Of Arduino Uno:

• Microcontroller ATmega328 DIP
• Operating Voltage 5V
• Input Voltage (recommended) 7-9V
• Input Voltage (limits) 6-20V
• Digital I/O Pins 14 (of which 6 provide PWM output)
• Analog Input Pins 6
• DC Current per I/O Pin 40 mA
• DC Current for 3.3V Pin 150 mA
• Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM
• 2 KB (ATmega328) EEPROM
• 1 KB (ATmega328)
• Clock Speed 16 MHz

Best Online Shopping website for Arduino. Here you get Arduino UNO R3 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad, and all over Pakistan.
